Small S-shape

666 709  prices without VAT

LUOlight small S shape

Free shipping
Delivery time: 10-20 working days



Clear
SKU: LUO D85-S Categories: , ,

Description

This luminaire is shaped by two small curved modules with a power unit and has the standard diffuser optics. For the light-focusing lens optic choose your option in the field above the price tag!

The following combinations are possible:
-white luminaire with diffuser optics in acrylics
-white luminaire with lens optics in black bamboo
-white luminaire with lens optics in natural bamboo shade

On special request, the luminaire can also be made in a natural bamboo shade.

You will not want to miss your LUOlight after you have used it once!

Additional information

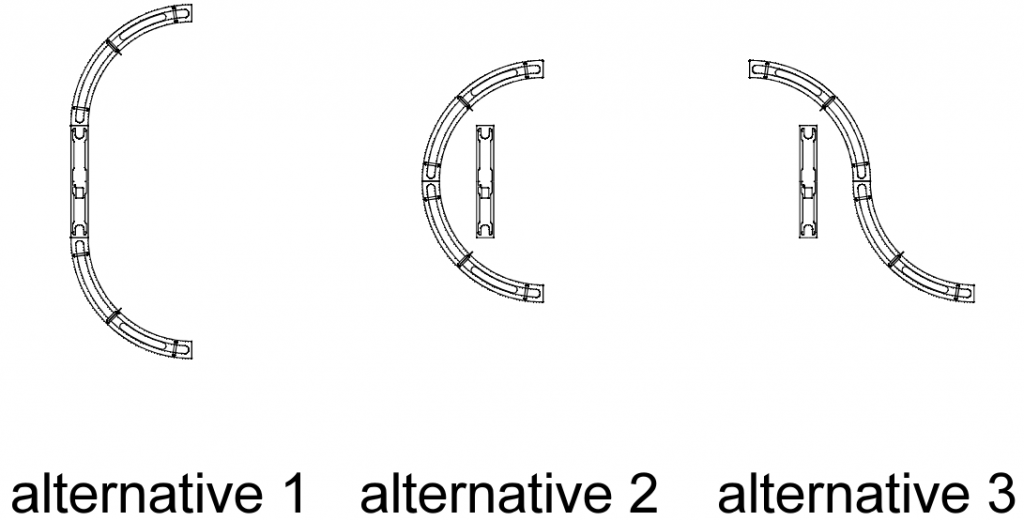

The modules in this circle can also be arranged in the following ways:

small S shape

luolight light effects
This video explains the lighting control features

luolight optics
This video shows the three optical adapters

Specifications

Material: Bamboo, acrylics

Light source: LED
Tunable white: 2800K-6800 K
Light directions: Up and down
Lighting control: Bluetooth

Power:
AC 220 – 240, V 50/60 Hz
DC 24 V, 0- 18W

Ingress Protection: IP20
IEC Protection Class: II
Marking: CE
EU Energy Labels (EEL): A++

Size: 148*42*3cm
Weight: 1,8kg
Optics: diffuser or focusing lens
Color: white+ lens adapter in black or

Installation

LUOlight is designed with easy installation in mind. A layperson can do the assembly. The modules interconnect via simple push plugs. For the main power connection, however, we recommend commissioning a professional installer. Please refer to our installation manual.

Scope of delivery

The systems come with all needed accessories for installation, including stencils for each module that can be laid out on the floor before the installation.
-2 meter suspension wires with stainless ceiling sockets
-2 meters 6 channel DC wires
-interconnector carriages
-magnets
etc

Did you know?

  • By purchasing LUOlight you help to mitigate climate change. Our modules are predominantly made from bamboo the fastest growing CO2 absorbing plant in the world.
  • When moving to new spaces you can rearrange the LUOlight modules in any way according to your liking. The systems can also be seamlessly connected with each other.
  • LUOlight is also modular within its parts. Each component including the LED lamp is easily replaceable if needed.
  • The four integrated light sources offer rich functionality. The down and up light can be dimmed independently and the color temperature can be adjusted from cool to warm.
  • The lights can be controlled remotely via handheld smart devices. Predefined lighting scenes can be stored for example fully, functional cool working light or decent, warm atmospheric light for the evenings.
  • The luminaire also can react automatically to the natural sunset and sunrise cycle. The rich lighting control features are standard in all LUOlight configurations.
